Bell continuous tone 24VDC GY
Article-Nr.
914.052.55
Type of fixing
Wall mounting
More information
€468.71*
Prices excl. VAT plus shipping costs

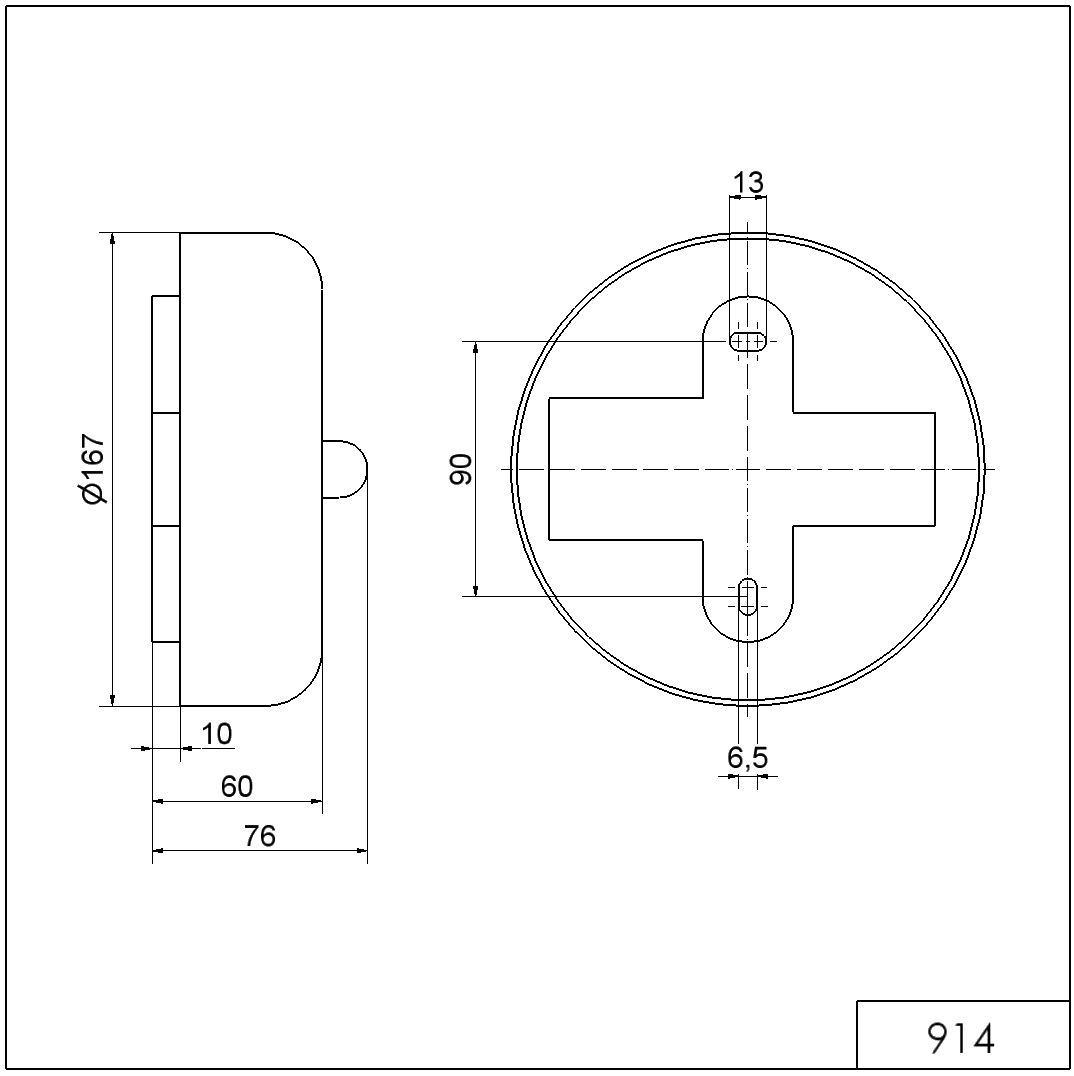

Technical Data
Height
76.000000
Diameter
167.000000
Materials
Steel
Housing colour
Grey
Protection category
IP66
Connection
Screw terminals
cross-sectional area maximum
1,50mm² / 16AWG
Cable entry
Screwed cable gland
Tension relief
Present (conforms to VDE)
Cable entry minimum
d = 5 mm
Type of fixing
Wall mounting
Cable entry maximum
d = 9 mm
Working temperature minimum
-30°C
Product weight
1405.000
Weight with packaging
1501.000
Working temperature maximum
+50°C
Operating voltage
24V
Rated operational current
300.000000
Operating voltage type
DC
Operating voltage tolerance
+/- 10%
Rated operational voltage
24 VDC
Rated inrush current
1.000 mA
Protection class
Protection class 2
Pollution degree
3
Service life optical
200 h minimum
Conforms with CE
Yes
Conforms with RoHS directive
Yes
WEEE
No
Conforms with ATEX-directive
No
Conforms with CCC
No
Conforms with UL
No
Conforms with FCC
No
Conforms with ISED
No
EAC certificate available
Yes
Conforms with AS-I
No
Conforms with RoHS CN
No
ICAO Certification
No
Conforms with DNV
No
Conforms with VdS
No
Conforms with TÜV
No
Volume (max) at 1m distance
98,0 dB (A)
Acoustic signal image
Continuous tone
Acoustic service life
200 h minimum
