Double Flash Beacon BWM 230VAC YE
Article-Nr.
897.300.68
Type of fixing
Base mounting; Wall mounting
Light colour
Yellow
More information
€552.20*
Prices excl. VAT plus shipping costs

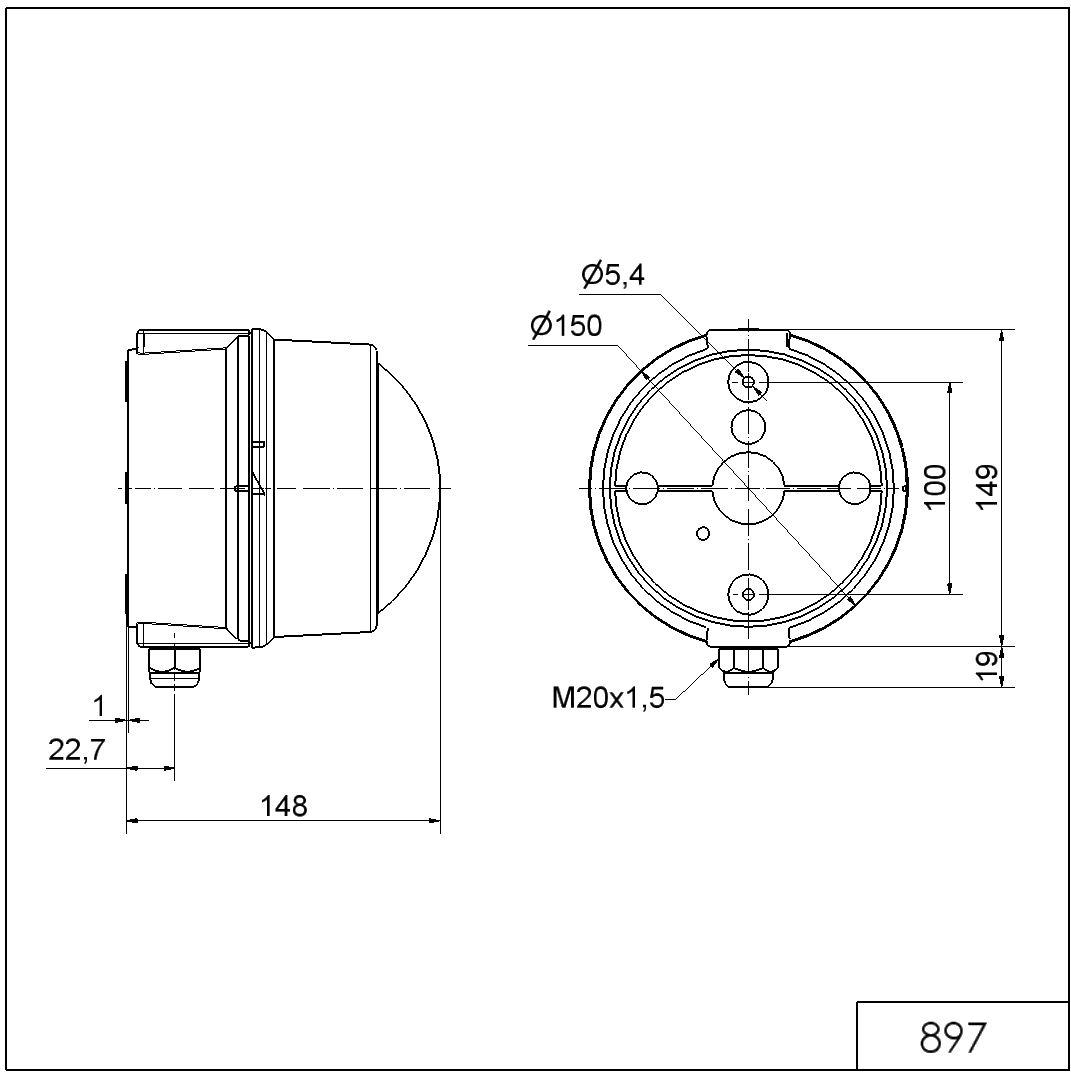

Technical Data
Height
148.000000
Diameter
149.000000
Materials
PC; PC/ABS
Dome colour
Yellow
Housing colour
Grey
Protection category
IP65
Connection
Screw terminals
cross-sectional area maximum
1,50mm² / 16AWG
Cable entry
Screwed cable gland
Tension relief
Present (conforms to VDE)
Cable entry minimum
d = 5 mm; d = 6 mm
Type of fixing
Base mounting; Wall mounting
Cable entry maximum
d = 12 mm; d = 7 mm
Working temperature minimum
-30°C
Product weight
528,00 g
Weight with packaging
616,00 g
Working temperature maximum
+50°C
Operating voltage
230V
Rated operational current
200.000000
Operating voltage type
AC
Operating voltage frequency
50Hz
Operating voltage tolerance
+/- 10%
Rated operational voltage
230 VAC
Protection class
Protection class 2
Pollution degree
3
Overvoltage category
II
insulation voltage
Ui = 250V / Uimp = 2500V
Light source
Xenon
Optical signal image
Double flash
Flash frequency
1 Hz
Flash output
15 J
Service life optical
4 million flashes minimum
Conforms with CE
Yes
Conforms with RoHS directive
Yes
WEEE
Yes
Conforms with ATEX-directive
No
Conforms with CCC
No
Conforms with UL
No
Conforms with FCC
No
Conforms with ISED
No
EAC certificate available
Yes
Conforms with UKCA (Importer)
Yes
Conforms with AS-I
No
Conforms with RoHS CN
No
ICAO Certification
No
Conforms with DNV
No
Conforms with VdS
No
Conforms with TÜV
No
