LED Perm. Beacon WM 115-230VAC GN/RD
Article-Nr.
894.060.68
Type of fixing
Wall mounting
Light colour
Green; Red
More information
€563.62*
Prices excl. VAT plus shipping costs

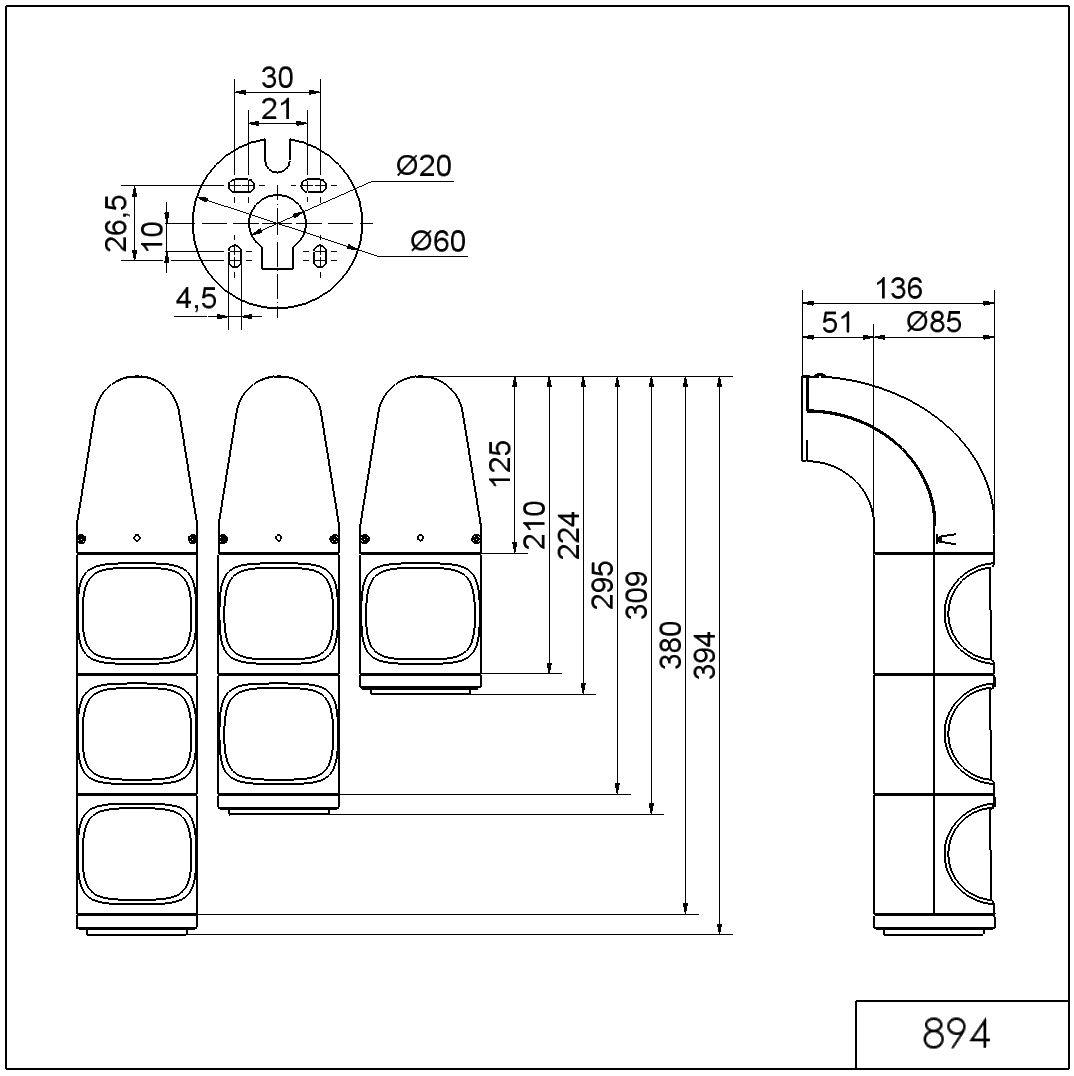

Technical Data
Height
309.000000
Diameter
85.000000
Materials
PC/ABS
Dome colour
Green; Red
Housing colour
Grey
Protection category
IP65; IP69K
Connection
Screw terminals
cross-sectional area maximum
1,50mm² / 16AWG
Cable entry
Membrane grommet
Cable entry minimum
d = 1 mm
Type of fixing
Wall mounting
Cable entry maximum
d = 13 mm
Working temperature minimum
-30°C
Product weight
492,00 g
Weight with packaging
563,00 g
Working temperature maximum
+50°C
Operating voltage
115-230V
Rated operational current
60.000000
Operating voltage type
AC
Operating voltage frequency
50Hz at 230V; 60Hz at 115V
Operating voltage tolerance
+/- 10%
Rated operational voltage
230 VAC
Rated inrush current
2.000 mA
Protection class
Protection class 2
Pollution degree
3
Overvoltage category
II
insulation voltage
Ui = 250V / Uimp = 2500V
Light source
LED
Optical signal image
Permanent
Service life optical
50,000 h maximum
Conforms with CE
Yes
Conforms with RoHS directive
Yes
WEEE
Yes
Conforms with ATEX-directive
No
Conforms with CCC
Yes
Conforms with UL
No
Conforms with FCC
No
Conforms with ISED
No
EAC certificate available
Yes
Conforms with UKCA (Importer)
Yes
Conforms with AS-I
No
Conforms with RoHS CN
No
ICAO Certification
No
Conforms with DNV
No
Conforms with VdS
No
Conforms with TÜV
No
