LED Perm. Beacon WM 24VDC GN/RD
Article-Nr.
894.060.55
Type of fixing
Wall mounting
Light colour
Green; Red
More information
€563.62*
Prices excl. VAT plus shipping costs
Technical Data

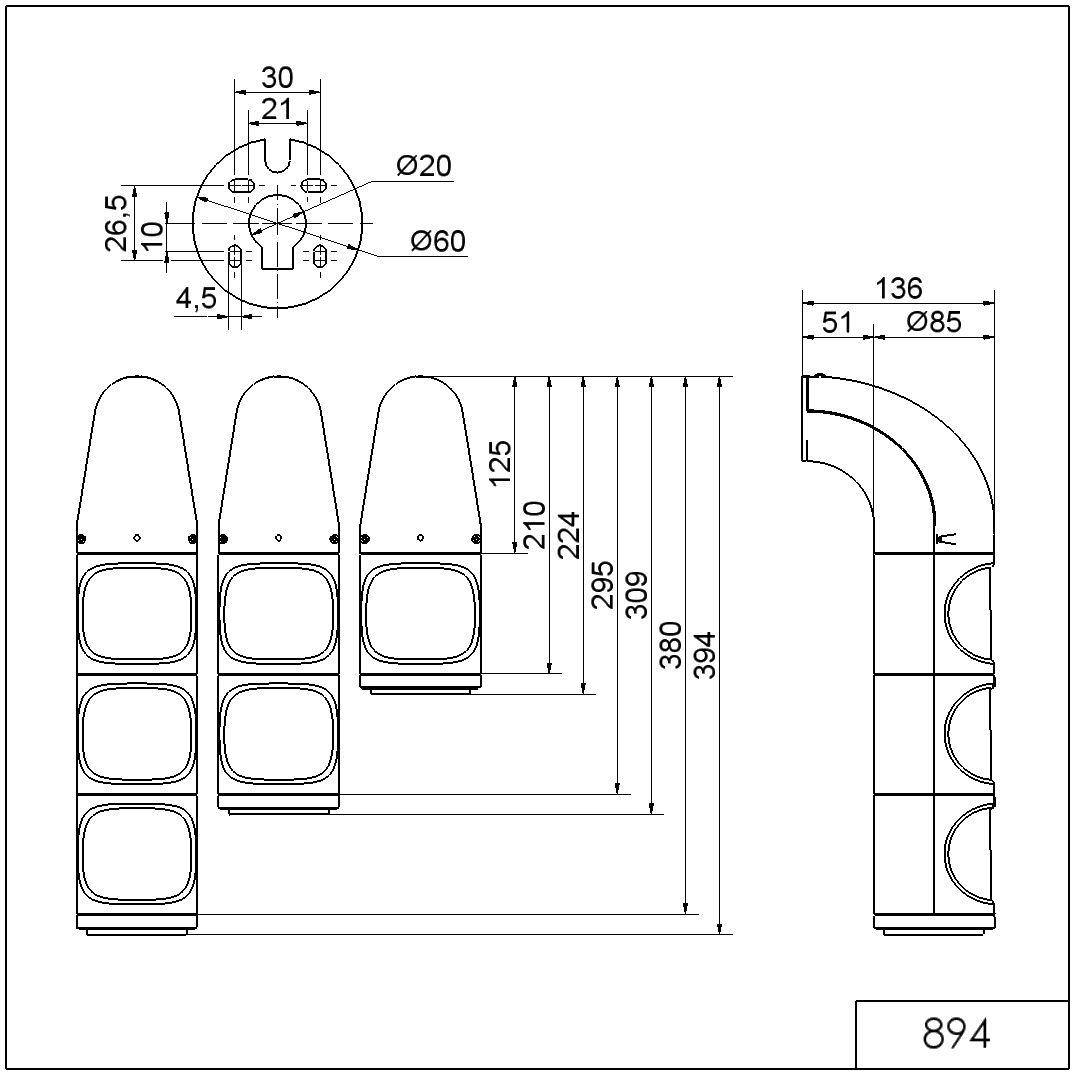

Height
309.000000
Diameter
85.000000
Materials
PC/ABS
Dome colour
Green; Red
Housing colour
Grey
Protection category
IP65; IP69K
Connection
Screw terminals
cross-sectional area maximum
1,50mm² / 16AWG
Cable entry
Membrane grommet
Cable entry minimum
d = 1 mm
Type of fixing
Wall mounting
Cable entry maximum
d = 13 mm
Working temperature minimum
-30°C
Product weight
477.000
Weight with packaging
556.000
Working temperature maximum
+50°C
Operating voltage
24V
Rated operational current
190.000000
Operating voltage type
DC
Operating voltage tolerance
+/- 10%
Rated operational voltage
24 VDC
Rated inrush current
500 mA
Protection class
Protection class 2
Pollution degree
3
Light source
LED
Optical signal image
Permanent
Service life optical
50,000 h maximum
Conforms with CE
Yes
Conforms with RoHS directive
Yes
WEEE
Yes
Conforms with ATEX-directive
No
Conforms with CCC
No
Conforms with UL
No
Conforms with FCC
No
Conforms with ISED
No
EAC certificate available
Yes
Conforms with UKCA (Importer)
Yes
Conforms with AS-I
No
Conforms with RoHS CN
No
ICAO Certification
No
Conforms with DNV
No
Conforms with VdS
No
Conforms with TÜV
No
